Geotextile Tubes & Sand Bag Installation

What are geotextile tubes or sandbags?

Geotextile tubes (also referred to as geo-tubes, dewatering tubes, erosion control tubes, or geotextile bags) are used for large shoreline protection, erosion control, dewatering and sludge removal projects.

Geotextile tubes are cost-effective solutions for containment, dewatering, desludging, and shoreline protection. They are typically composed of high-tenacity yarns woven together to function in marine applications.

geotextile tubes or sand bags
geotextiles and sandbags shoreline protection

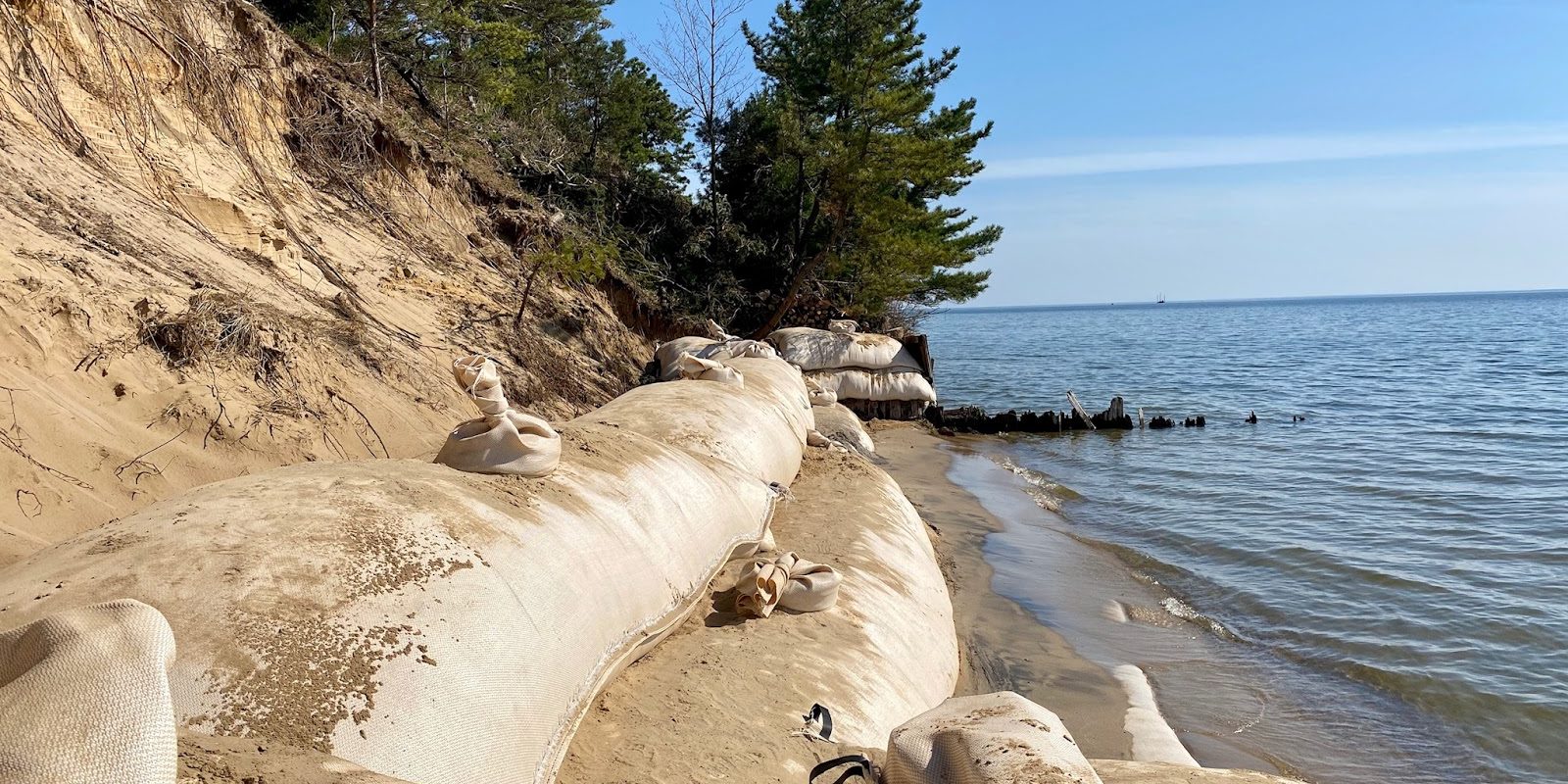

Geotubes on a lakeshore

Different Types of Geotextile Fabrics

There are different types of geotextile fabrics that are each designed to accommodate different flow rates and strengths. Geotextile tubes and bags come in different sizes as well.

Geotextile tubes and sand bags have many advantages. Compared to other methods, they are very cost-effective. They are also more environmentally-friendly. The decanted water can also typically be discharged into waterways. Since they are efficient and require no heavy equipment, they reduce land usage and damage.

More benefits include:

  • UV resistant
  • Versatile
  • Minimal impact on the environment
  • Cost-effective
  • High-strength
  • Efficient

Geotextiles are resistant to ultraviolet deterioration and degradation. They are very efficient and have a minimal environmental impact.



Geotextile Sand Bag Applications

Some common applications for geotextile tubes or sandbags include:

  • Shoreline Erosion Protection
  • Slope Protection
  • Soil remediation
  • Industrial applications
  • Mining
  • Wastewater liners
  • Municipal applications
  • Waste containment
  • Sludge dewatering
  • Agricultural applications
  • Horticulture and aquaculture
  • Animal waste containment
  • Water treatment
  • Environmental containment
sand bag installation backfill

What are geotextile tubes used for?

Geotextile tubes and geotextile bags are useful in marine construction. Geotextile tubes have been used to protect shorelines, protecting the toe and slope of sand dunes, reclaim land, and rebuild beaches. They can also be used to prevent storm damage, produce sand dune cores, create breakwaters, build structures, and form islands.

Today, climate change has caused the water levels in the Great Lakes to rise significantly, threatening homes and beaches along the coasts. Geotextile tubes and geotextile bags can be used to protect these shorelines and properties. They can be stacked to form a barrier which filters out water and protects the land and structures from water damage and further erosion.

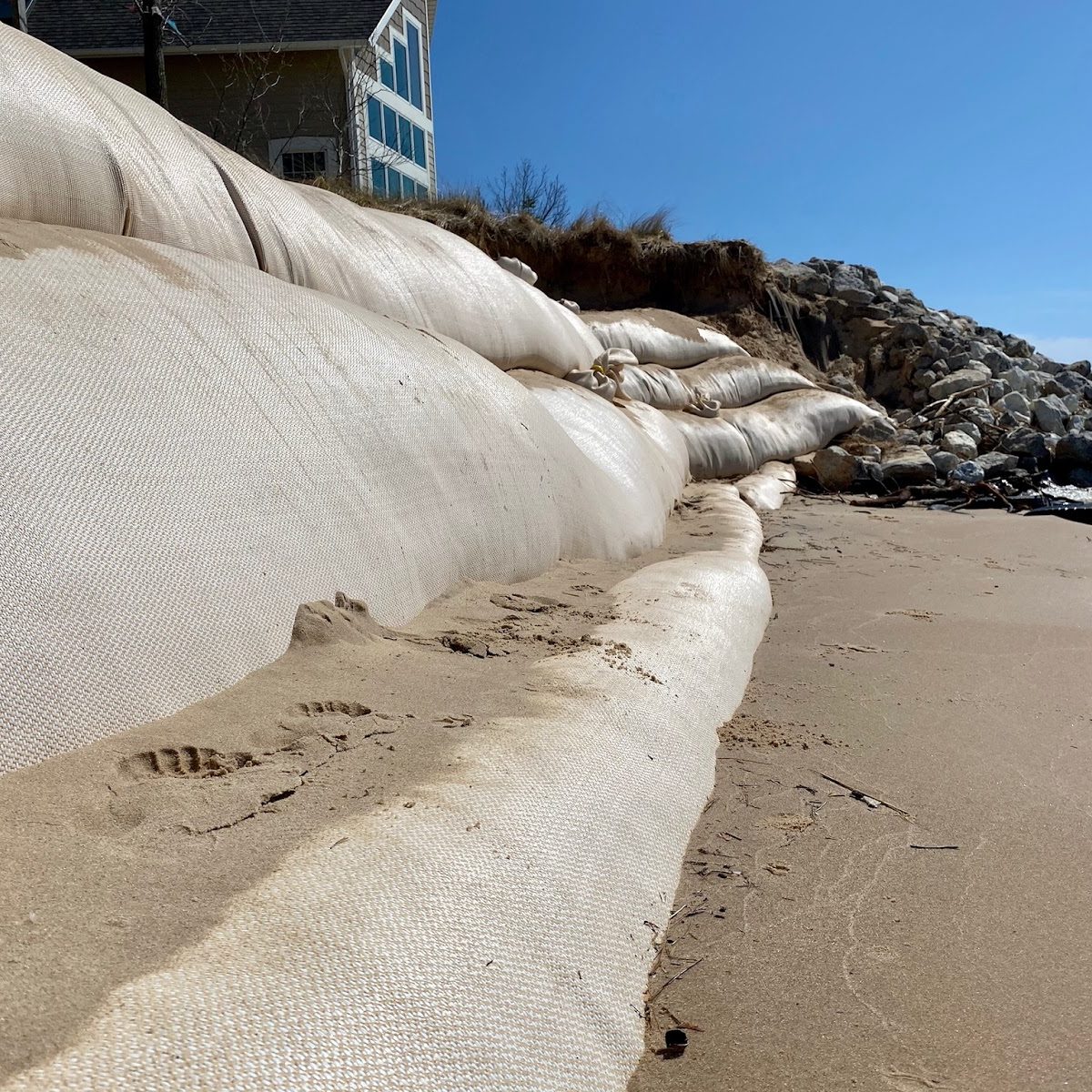

Geotubes close up

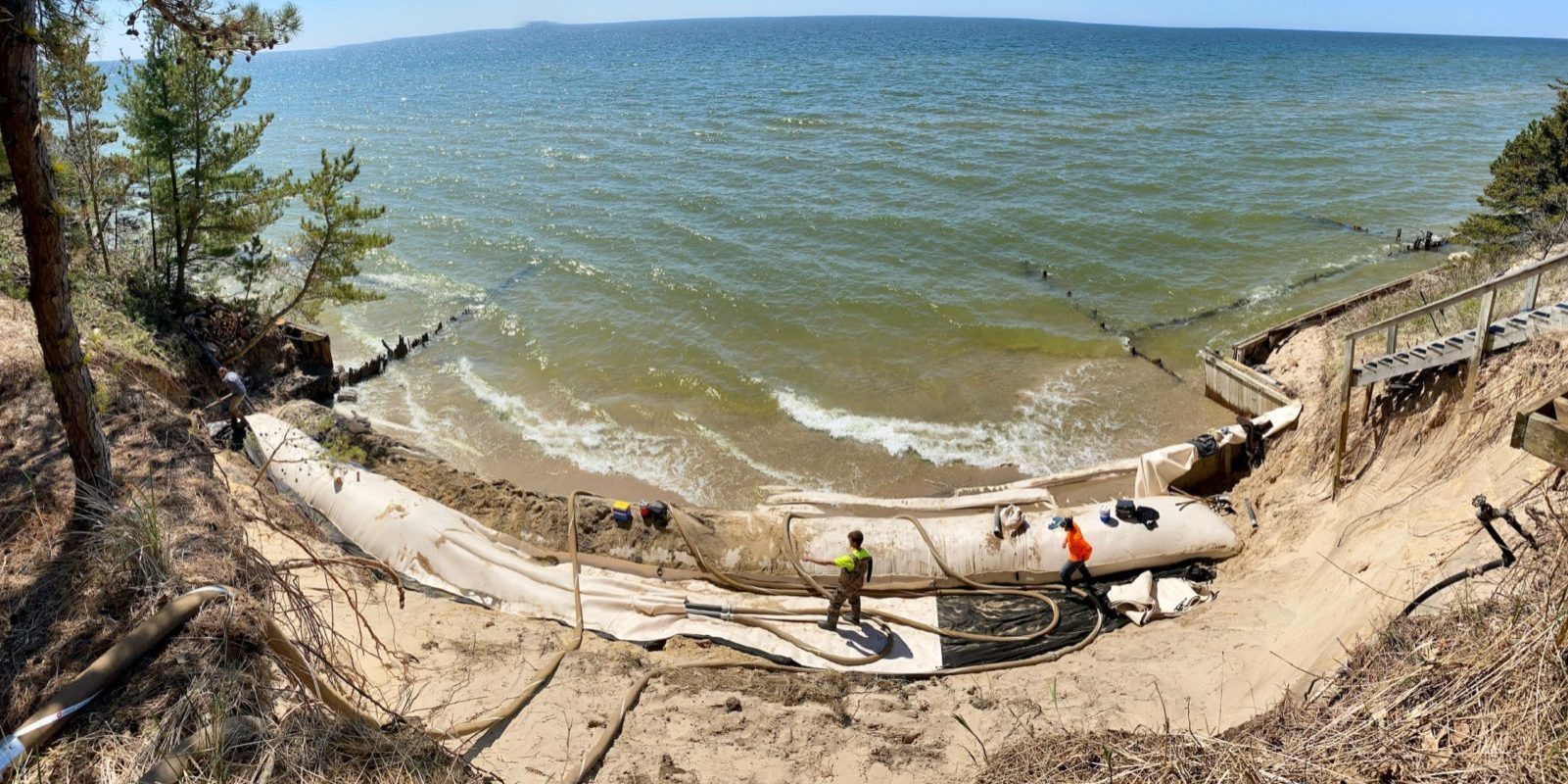

Geotextile tubes installation

Geotextile Tube Installation Process

Step 1

Clean, dry sand is delivered in from an upland source via Superior Groundcover's conveyor delivery trucks.

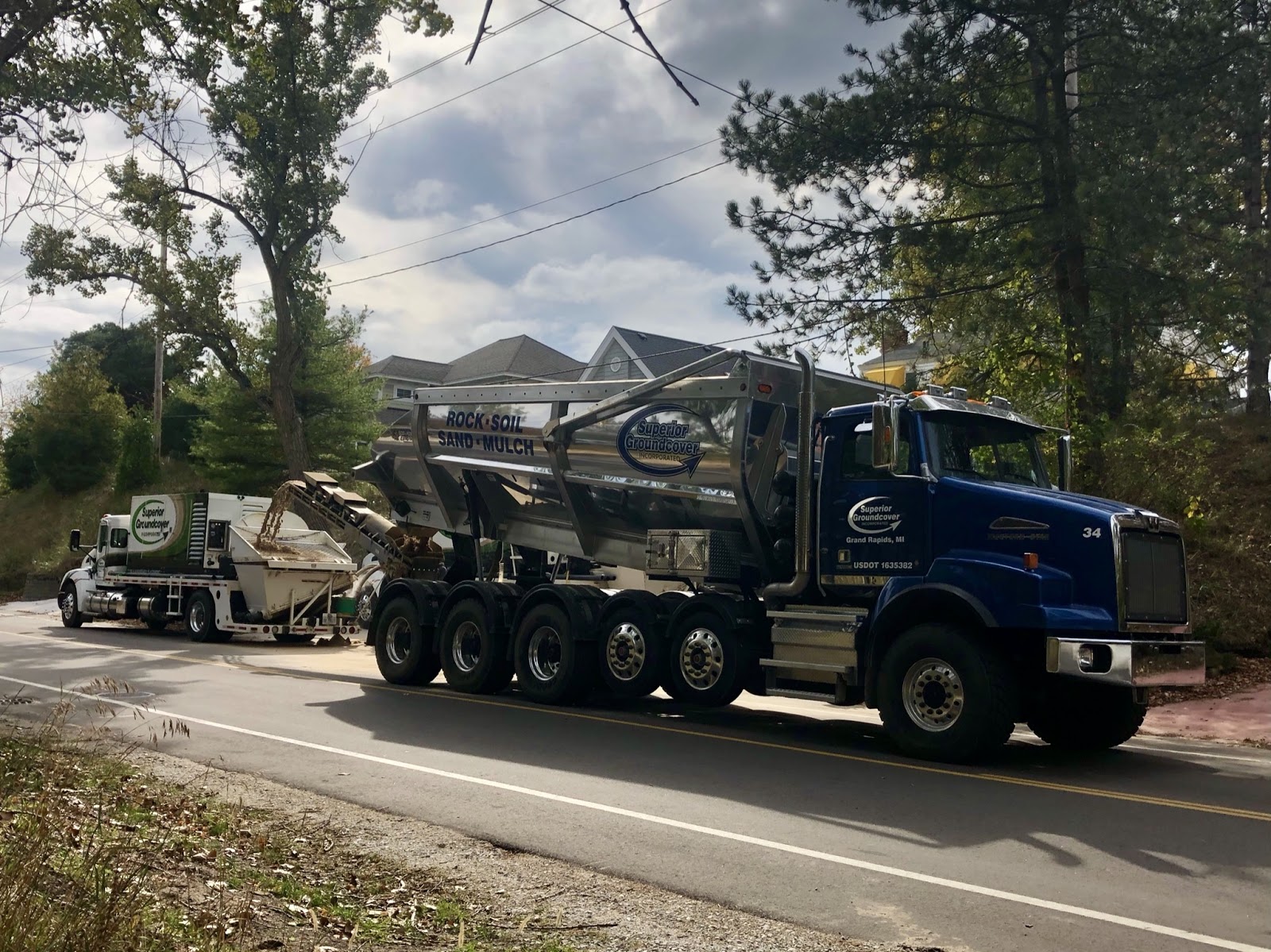

Superior Groundcover sand blower truck

Step 2

Sand hoses are connected to the sand blower truck and are laid out to the areas that require sandbag protection.

two superior groundcover trucks

Step 3

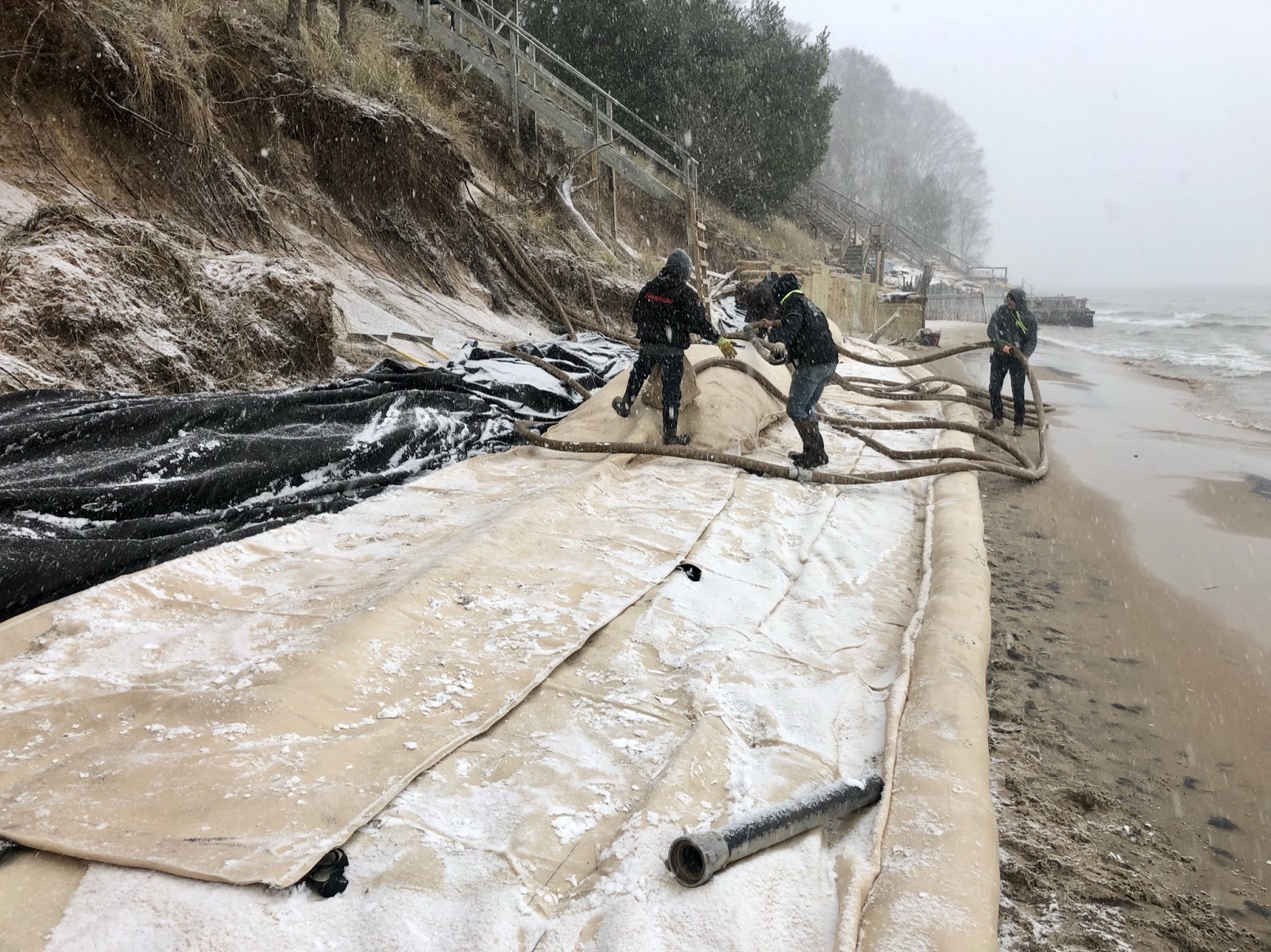

Anti-scour apron fabric, made from the same high-quality material as the geotextile tubes and sandbags, is installed under the area that requires sandbags to help prevent wave scouring under the sand tube system. A non-woven fabric barrier is placed behind and under each level of sand tubes.

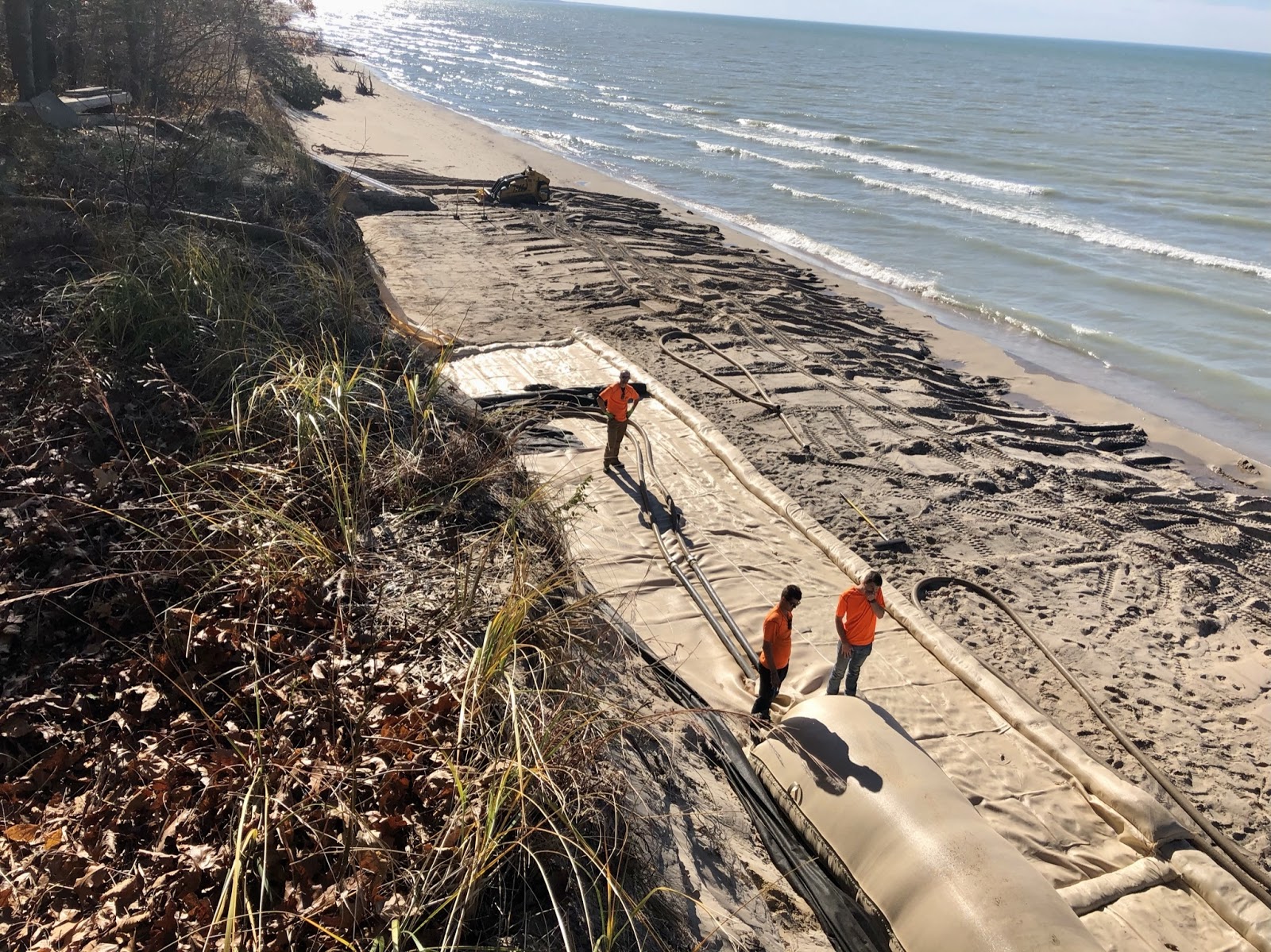

installing geotextile sand bags

Step 4

The empty geotextile tubes and sandbags are set in place by hand along the toe of the bluff.

installing sandbags on lake michigan

Step 5

Clean, dry sand is loaded directly into the sand truck hopper on the street or driveway via conveyor delivery trucks, or a bobcat may be used to load sand from a bulk pile into the hopper of the sand blower truck.

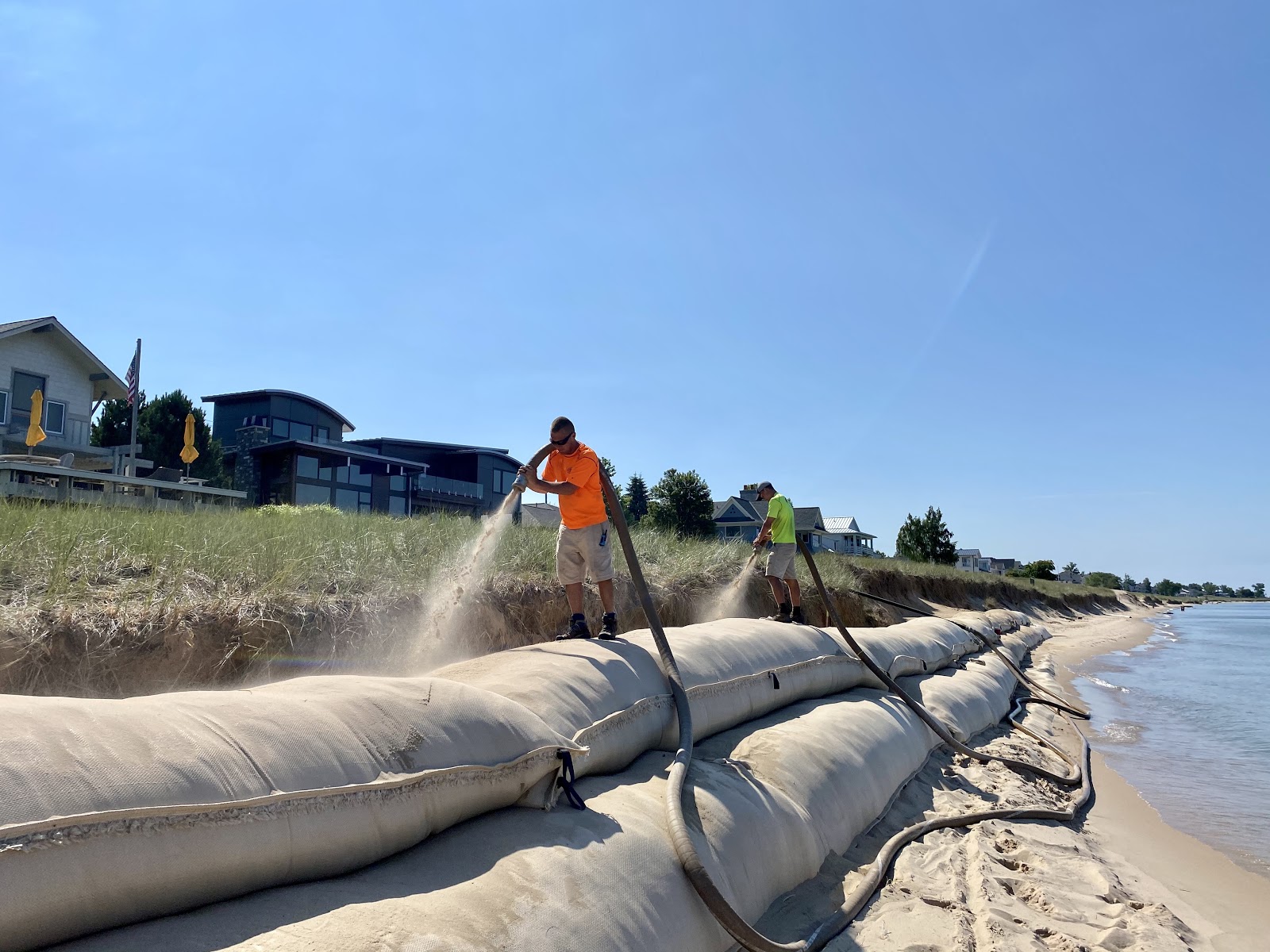

Clean, dry sand is pneumatically installed into the sand tubes along the shoreline frontage.

sand loaded into geotextile bags

Step 6

Clean, dry sand is pneumatically installed behind each level of sand tubes as needed for backfilling purposes.

sand bag installation backfill

Step 7

Once all sand tubes are placed by hand and filled with clean dry sand, the installation process is complete. Several hundred feet of shoreline can be protected within days by using Superior Groundcover’s sand tube and sandbag installation method.

Geotextiles installed on shoreline

Where We Do It.

Geotextile Tubes & Sand Bags

We offer installation for geotextile tubes all over the shorelines of Western Michigan, including the following areas:

Grand Rapids

Grand Haven

Holland
